Creating Inline Scroll Reveals with Divi

Every week, we provide you with new and free Divi layout packs which you can use for your next project. For one of the layout packs, we also share a use case that’ll help you take your website to the next level.

This week, as part of our ongoing Divi design initiative, we’re going to show you how to create beautiful inline scroll reveals using the DJ Layout Pack. This is a great way to draw attention to one specific column container on your website, without having to add it to your page multiple times. We’ll add a cool hover/release effect to the technique that will help visitors hold on to the column container and drop it whenever they feel like it. You’ll be able to download the JSON file for free as well!

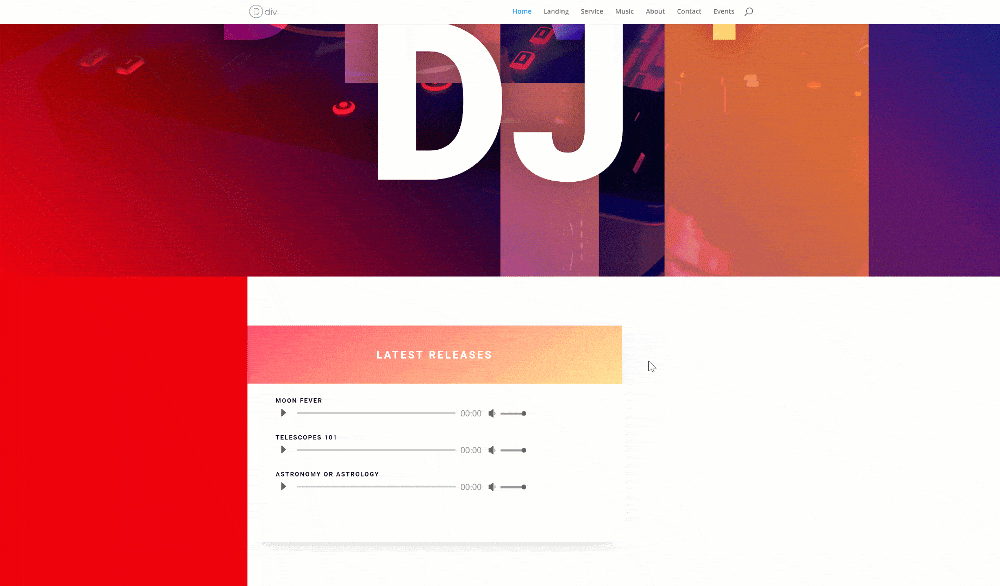

Preview

Before we dive into the tutorial, let’s take a quick look at the outcome across different screen sizes.

Desktop

Mobile

Download The Inline Scroll Reveals Layout for FREE

To lay your hands on the free inline scroll reveals layout, you will first need to download it using the button below. To gain access to the download you will need to subscribe to our newsletter by using the form below. As a new subscriber, you will receive even more Divi goodness and a free Divi Layout pack every Monday! If you’re already on the list, simply enter your email address below and click download. You will not be “resubscribed” or receive extra emails.

Let’s Start Recreating!

Create New Page Using DJ Layout Pack’s Home Page

Add New Page

For this use case tutorial, we’re going to use one of the DJ layouts. Start by creating a new page, giving your page a title and switching over to Visual Builder.

Upload DJ Homepage

Continue by uploading the DJ homepage layout to your page.

Add Higher Z Index Value to Each Section on Page

Add Higher Z Index to Hero Section

We’re going to make one specific column fixed and allow it to show through wherever we want. The opposite is true as well; we want to hide it wherever we don’t want it to show up. To do that, we’re going to give each section on the page (besides the one the column is located in, which is section #2 on the page) a higher z index value. Start by opening the hero section and increase the z index in the visibility settings.

Copy Z Index

Once you’ve added the z index, you can copy it.

Paste to Other Sections on Page Except Section #2

And paste it onto all the other section on the page, except for section #2 (the section that contains the column that we’ll transform into an inline scroll reveal).

Change Section #2

Place Column Content in Separate Rows

Change Row Column Structure

Let’s start modifying the second section, starting with the column structure of the row.

Duplicate Row

Continue by cloning the row.

Delete Modules in Rows

Remove the Text and Button Modules in the first row and the Audio Modules in the second row.

Modify Row #1 in Section #2

Remove Some Audio Modules (to Fit Smaller Screen Sizes)

In the upcoming steps, we’re going to make the column containing the Audio Modules fixed. Now, to make sure the column fits the viewport height of smaller screen sizes, we’ll need to remove some Audio Modules.

Add Bottom Margin to Row

Continue by opening the row settings, going to the design tab and adding some bottom padding. We’ll need this space to allow the column to reveal on scroll later on the tutorial.

Open Column Settings

Time to start transforming the column into an inline scroll reveal! Open the column settings.

Hover Box Shadow

Then, go to the design tab and change some box shadow values on hover.

• Box Shadow Blur Strength: 150px
• Shadow Color: rgba(0,0,0,0.55)

Hover Transform Scale

Increase the size of the column on hover as well by modifying the transform scale values.

Default Main Element

To make the column fixed, we’re going to add a few lines of CSS code to the main element of the column.

position: fixed;
bottom: 100px;
max-width: 800px !important;
width: 80% !important;

Hover Main Element

Make sure you add the fixed position CSS line to the hover main element as well. This will prevent the column from flickering.

position: fixed;

Default Z Index

Now, in normal circumstances, we want the module to appear below all page content. To make sure that happens, we’re going to change the z index of the column.

Hover Z Index

On hover, however, we want the column to overlap all page content. As soon as someone releases the column, it’ll fall back in its place behind all page content. Change the z index on hover accordingly:

Modify Row #2 in Section #2

Add Top Padding to Column

For aesthetic purposes, we’re going to open the column in the second row of section #2 and add some custom top padding.

Add Custom Bottom Margin to Sections Throughout Page

Locate Section

Open Section Settings

Now that we’ve modified the inline scroll reveal column, we have to create some space for it to show up. We’ve done that for the row it’s located in already (700px bottom padding), but we’ll allow the column to reveal on other spots on the page as well. Open the section settings of the following section:

Add Bottom Margin

Go to the spacing settings and add some bottom margin. Adding bottom margin will create empty space on the page that’ll allow the low z index column to show up.

Locate Section

Open Section Settings

Open the following section next:

Add Bottom Margin

And add some bottom margin here too.

Remove Excess Section Padding

Remove Section #2 Bottom Padding

Now, the only thing that’s left for us to do is optimizing the way our design matches the inline scroll reveal. Open the second section on the page and remove the bottom padding.

Locate Section

Open Section Settings

Open the following section settings next:

Remove Bottom Padding & Add Top Padding

Add some top padding and remove the bottom padding.

• Top Padding: 100px
• Bottom Padding: 0px

Locate Section

Open Section Settings

On to the last section. Open the section settings.

Remove Top Padding

Remove the top padding and you’re done!

Preview

Now that we’ve gone through all the steps, let’s take a final look at the outcome across different screen sizes.

Desktop

Mobile

Final Thoughts

In this post, we’ve shown you how to create inline scroll reveals with Divi and the DJ Layout Pack. This is a great way to add interaction to your website. We hope this tutorial inspires you to create your own fixed inline scroll reveals as well! If you have any questions or suggestions, make sure you leave a comment in the comment section below.
