How to Create a Rotated Global Header with Divi’s Theme Builder

Ever since the Divi Theme Builder has come out, we’ve tried to guide you through the process of creating your own global headers. We’ll continue doing that by showing you how to create a rotated global header that appears on the left side of your pages and posts. The header’s background color is completely transparent, allowing the page/post content to show through. We’ve made sure that the global header stays fixed to the left side while scrolling and we’ve transformed the menu into a mobile-friendly version as well. In this use case tutorial, we’ll show you how to recreate the design from scratch and you’ll also be able to download the template JSON file for free!

Let’s get to it.

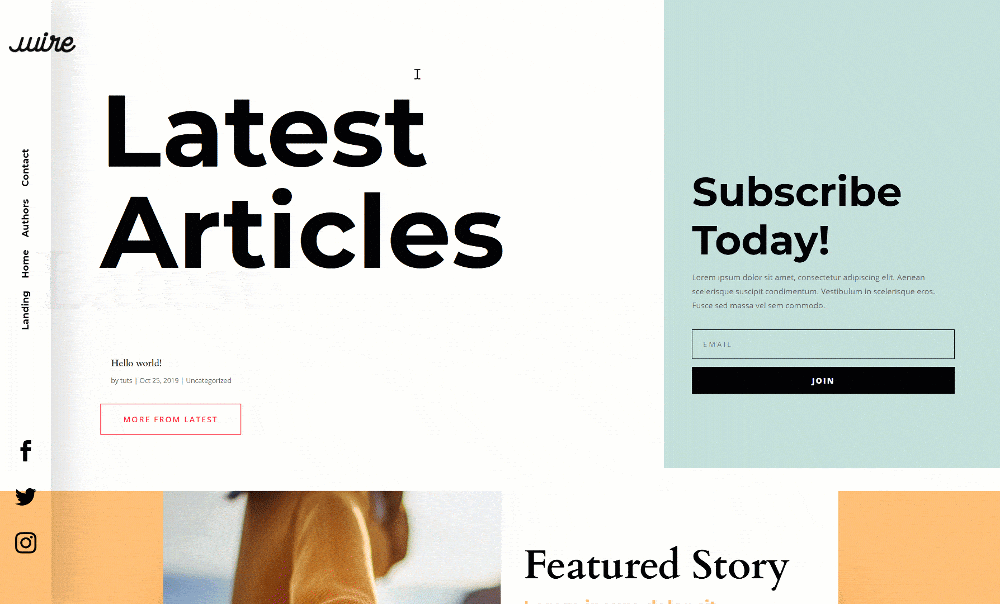

Preview

Before we dive into the tutorial, let’s take a quick look at the outcome across different screen sizes.

Desktop

Mobile

Download The Rotated Global Header Template for FREE

To lay your hands on the rotated global header template, you will first need to download it using the button below. To gain access to the download you will need to subscribe to our newsletter by using the form below. As a new subscriber, you will receive even more Divi goodness and a free Divi Layout pack every Monday! If you’re already on the list, simply enter your email address below and click download. You will not be “resubscribed” or receive extra emails.

1. Go to Divi Theme Builder & Start Building Global Header

Go to Divi Theme Builder

Start by going to the Divi Theme Builder on your WordPress website.

Start Building Global Header

Click on ‘Add Global Header’ and select ‘Build Global Header’.

2. Start Building Rotated Side Global Header

Add New Section

Background Color

Once inside the template editor, you can open the section that’s already there and change the background color across different screen sizes.

• Background Color: rgba(0,0,0,0) (Desktop), #FFFFFF (Tablet & Phone)

Sizing

Modify the section’s sizing settings next.

• Width: 5vw (Desktop), 100% (Tablet & Phone)
• Min Height: 100vw (Desktop), auto (Tablet & Phone)

Spacing

Add some custom top and bottom padding too.

• Top Padding: 2vw
• Bottom Padding: 2vw

Box Shadow

Then, go to the box shadow settings and add a custom box shadow across different screen sizes.

• Box Shadow Horizontal Position: 32px (Desktop), 0px (Tablet & Phone)
• Box Shadow Blur Strength: 49px
• Box Shadow Spread Strength: 0px (Desktop), 19px (Tablet & Phone)
• Shadow Color: rgba(0,0,0,0.12)

Default Main Element

We’ll also make sure the rotated global header stays fixed to the left side by adding a few lines of CSS code to the section’s main element.

position: fixed;
top: 0;
display: flex;
flex-wrap: wrap;
align-content: center;

Hover Main Element

Make sure you add those same lines of CSS code to the hover main element of the section too.

position: fixed;
top: 0;

Default Visibility

Then, increase the z index in the visibility settings.

Hover Visibility

Make sure that same value applies on hover.

Add New Row

Column Structure

Once you’ve completed the section settings, continue by adding a new row using the following column structure:

Sizing

Without adding any modules yet, open the row settings and change the sizing settings.

• Use Custom Gutter Width: Yes
• Gutter Width: 1

Spacing

Remove all default top and bottom padding too.

• Top Padding: 0px
• Bottom Padding: 0px

Column Settings

Main Element (Tablet & Phone)

On tablet and phone, we’re going for an entirely different look and feel. We’ll place three different modules next to each other. To do that, we’ll need to add a bit of CSS code. Open the column’s settings, go to the advanced tab and insert the following lines of CSS code into the main element of tablet and phone:

display: grid;
grid-template-columns: 33.33% 33.33% 33.33%;

Add Image Module to Column

Upload Logo

Time to start adding modules! The first module we need is an Image Module. Upload a semi-transparent logo image file of your choice.

Sizing

Then, go to the design tab and change the width across different screen sizes.

• Width: 4vw (Desktop), 12vw (Tablet), 16vw (Phone)

Transform Scale

Increase the size of the module by modifying the transform scale settings next.

• Right: 170% (Desktop), 100% (Tablet & Phone)
• Bottom: 170% (Desktop), 100% (Tablet & Phone)

Transform Translate

And push the module to the right by adding a bottom transform translate value on desktop.

• Bottom: 1vw (Desktop), 0vw (Tablet & Phone)

Add Menu Module to Column

Select Menu

The next module we need is the Menu Module. Select a menu of your choice.

Remove Background Color

Remove the module’s background color next.

Layout

Then, go to the design tab and change the layout settings.

• Style: Centered
• Dropdown Menu Direction: Downwards

Default Menu Text

Modify the menu text settings too.

• Active Link Color: #cecece
• Menu Font: Montserrat
• Menu Font Weight: Bold
• Menu Text Color: #000000
• Menu Text Size: 0.9vw (Desktop), 2vw (Tablet), 2.5vw (Phone)

Hover Menu Text

Change the menu text color on hover.

Dropdown Menu

We’re also making some changes to the dropdown menu settings.

• Dropdown Menu Line Color: #000000
• Dropdown Menu Text Color: #000000

Icons

Change the hamburger menu icon color next.

• Hamburger Menu Icon Color: #000000

Spacing

And add some custom margin values across different screen sizes.

• Top Margin: 18vw (Desktop), 0vw (Tablet & Phone)
• Bottom Margin: 18vw (Desktop), 0vw (Tablet & Phone)
• Left Margin: -13vw (Desktop), 0vw (Tablet & Phone)
• Right Margin: -13vw (Desktop), 0vw (Tablet & Phone)

Transform Rotate

Now, to create the rotated effect, we’ll play around with the module’s transform rotate values.

• Left: 270deg (Desktop), 0deg (Tablet & Phone)

Add Social Media Follow Module to Column

Add Social Networks

On to the Social Media Follow Module, which is the next and last module we need to complete our rotated global header. Add some social networks of your choice.

Reset Social Network Styles

Continue by resetting the settings of each social network individually. This will help us get rid of their background color.

Alignment

Then, move on to the design tab of the module and change the module alignment across different screen sizes.

• Alignment: Left (Desktop), Right (Tablet & Phone)

Icon Settings

Last but not least, change the icon settings too.

• Icon Color: #000000
• Use Custom Icon Size: Yes
• Icon Font Size: 2.1vw

3. Save Builder Changes & View Result

Once you’ve completed all the modules, you can save the template, exit the Divi Theme Builder and view the outcome on your website!

Preview

Now that we’ve gone through all the steps, let’s take a final look at the outcome across different screen sizes.

Desktop

Mobile

Final Thoughts

In this post, we’ve shown you how to create a rotated global header using Divi’s new Theme Builder. We’ve also transformed the menu bar into a highly mobile-friendly version on mobile. Unless chosen otherwise, the global header we’ve created will show up on all your post and pages. You were able to download the JSON file for free as well! If you have any questions or suggestions, feel free to leave a comment in the comment section below!
