How to Toggle Between Images in a Stunning Divi Split Section Design

Interactive designs can make any website shine. In this tutorial, we’ll show you how to toggle between images in a stunning split section design. When hovering an image, it’ll come to the front while covering the other. Follow the steps below to recreate the design or download the JSON file through the sign-up link. Make sure you use images with transparent backgrounds so you can control the background colors of each column.

Let’s get to it!

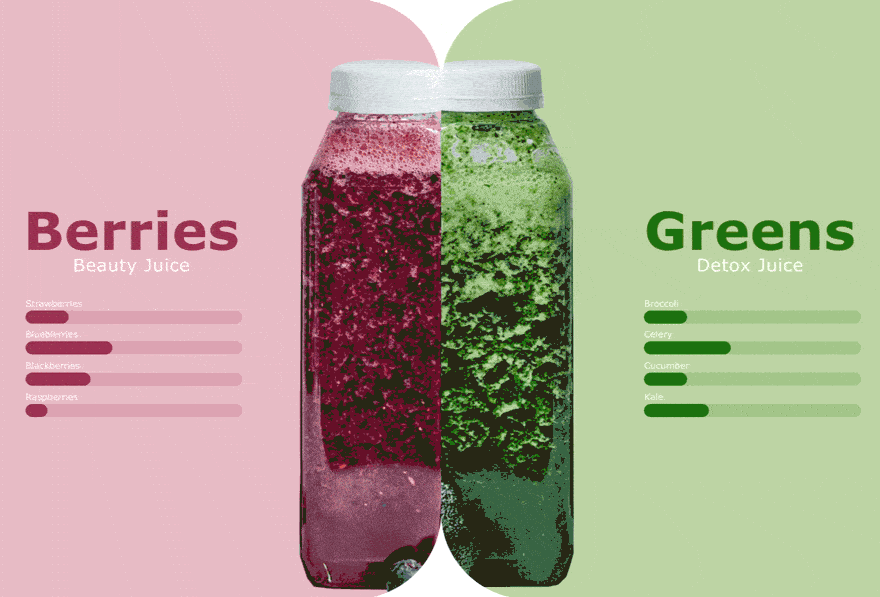

Preview

Let’s take a look at the design across different screen sizes.

Desktop

Mobile

Download The Toggle Image Design for FREE

To lay your hands on the free toggle image design, you will first need to download it using the button below. To gain access to the download you will need to subscribe to our newsletter by using the form below. As a new subscriber, you will receive even more Divi goodness and a free Divi Layout pack every Monday! If you’re already on the list, simply enter your email address below and click download. You will not be “resubscribed” or receive extra emails.

Let’s Start Recreating

Add New Section

Spacing

Create a new page or open an existing one. Add a regular section, open the section settings and remove all default top and bottom padding.

• Top + Bottom Padding: 0vw

Visibility

Then, set the section’s overflows to hidden.

• Horizontal + Vertical Overflow: Hidden

Add New Row

Column Structure

Continue by adding a new row using the following column structure:

Sizing

Before adding any modules, adjust the sizing of the row.

• Gutter Width: 1
• Width: 100%
• Max Width: 100%

Spacing

Remove the row’s default top and bottom padding as well.

• Top and Bottom Padding: 0vw

Column 1 Settings

Background

Open the column 1 settings next and add a background color.

Border

Then, adjust the column’s border settings across different screen sizes.

• Rounded Corners: Top Right + Bottom Right
  • Desktop: 10vw
  • Tablet & Phone: 0vw

Visibility

Move on to the advanced tab and adjust the visibility settings as follows:

• Horizontal + Vertical Overflow
  • Desktop: Default
  • Hover: Visible
• Z-Index:

Column 2 Settings

Background

Now, add the color background to column 2.

• Color: Pale Green #bfd5a5

Border

Change the second column’s border settings as follows:

• Rounded Corners: Top Left + Bottom Left
  • Desktop: 10vw
  • Tablet & Phone: 0vw

Visibility

Last but not least, change the visibility settings accordingly:

• Horizontal + Vertical Overflow
  • Desktop: Default
  • Hover: Visible
• Z-Index:

Add Image Module to Column 1

Add Image

Time to start adding modules! Add an image module to column 1 and upload a semi-transparent image of your choice.

Background

Use the column’s background color as your image background color.

Sizing

Then, in the design tab, adjust the sizing settings.

Spacing

Add some custom padding as well.

Transform

Last but not least, adjust the module’s transform translate settings.

• Transform Translate: x-axis 19vw

Add Text Module to Column 1

Add content

On to the next module, which is a text module. Add some H2 and paragraph content of your choice.

Text

Move on to the design tab and change the text settings as follows.

• Font: Verdana
• Color: White #ffffff
• Size:
  • Desktop: 2vw
  • Tablet: 3vw
  • Phone: 3.5vw
• Letter Spacing: 1px
• Alignment: centered

Heading Text

Style the heading text next.

• Heading Level: H2
• Font: Verdana
• Weight: Bold
• Alignment: Center
• Color: Magenta #9d3056
• Size:
  • Desktop: 6vw
  • Tablet + Phone: 8vw

Sizing

Then, adjust the sizing of the module.

• Width:
  • Desktop: 56%
  • Tablet + Phone: 43%

Spacing

Complete the module’s settings by modifying the spacing settings across different screen sizes.

• Top Margin:
  • Desktop: -55vw
  • Tablet: -70vw
  • Phone: -90vw
• Bottom Padding:
• Left Padding: 2vw

Add Bar Counters Module to Column 1

Bar Counter Settings 1-4

Titles

The next and last module we need in column 1 is the bar counters module. Add titles to the bar counters.

1. Strawberries
2. Blueberries
3. Blackberries
4. Raspberries

Percentages

Along with the percentages.

1. 20
2. 40
3. 10
4. 20

Sizing

Click on the first bar and set the height. Repeat this step for all four bars.

General Bar Counters Settings

Elements

In the general bar counter settings, open the elements settings. Toggle the percentage to “No”.

Background

Now, add a semi-transparent background.

• Color: Pale Rose with Transparency rgba(157,48,86,0.18)

Bar

In the design tab, give the bars a magenta bar color.

• Background Color: Magenta #9d3056

Title Text

Style the title text settings next.

• Font: Verdana
• Color: White #ffffff
• Size:
  • Desktop: 1vw
  • Tablet: 2vw
  • Phone: 3vw

Sizing

Continue by adjusting the sizing settings of the module.

• Width:
  • Desktop: 49%
  • Tablet + Phone: 33%

Spacing

Modify the spacing settings too.

• Top Margin:
• Bottom Margin:
  • Desktop: 21vw
  • Tablet + Phone: 28vw
• Left Margin:
  • Desktop: 3vw
  • Tablet + Phone: 6vw
• Bottom + Left Padding: 0vw

Border

Modify the border settings next.

• Rounded Corners: 1vw all four corners

Visibility

Finally, adjust the z index and overflows in the visibility tab.

• Horizontal Overflow: Visible
• Vertical Overflow: Hidden
• Z-Index: 11

Add Image Module to Column 2

Add image

On to the second column! Add a new image module and upload a semi-transparent image of your choice.

Background

Use the column 2 background color as your image’s background color next.

• Color: Pale Green #bfd5a5

Sizing

In the design tab, adjust the sizing of the module.

Spacing

Add some custom left padding on smaller screen sizes too.

Transform

Last but not least, change the transform translate settings.

• Transform Translate: x-axis -19.6vw

Add Text Module to Column 2

Add content

Continue by adding a Text Module to column 2 with some H2 and paragraph content.

Text

Then, in the design tab, style the text.

• Font: Verdana
• Color: White #ffffff
• Size:
  • Desktop: 2vw
  • Tablet: 3vw
  • Phone: 3.5vw
• Letter Spacing: 1px
• Alignment: Center

Heading Text

Change the heading text settings too.

• Heading Level: H2
• Font: Verdana
• Weight: Bold
• Alignment: Center
• Color: Green #2c5b00
• Size:
  • Desktop: 6vw
  • Tablet + Phone: 8vw

Sizing

And adjust the module’s sizing settings.

• Width: 60%
• Alignment: Right

Spacing

Last but not least, use some custom spacing values across different screen sizes.

• Top Margin:
  • Desktop: -55vw
  • Tablet: -63vw
  • Phone: -90vw
• Bottom Padding:
• Left Padding:
  • Desktop: 0vw
  • Tablet + Phone: 16vw
• Right Padding:

Add Bar Counters Module to Column 2

Bar Counter Settings 1-4

Titles

The last module we need in column 2 is the bar counters module. Add four bar counters.

1. Broccoli
2. Celery
3. Cucumber
4. Kale

Percentages

Assign a percentage to each bar counter.

1. 20
2. 40
3. 20
4. 30

Sizing

Open the first bar’s individual settings and modify the height in the sizing settings. Repeat this step for all four bars.

General Bar Counters Settings

Elements

In the general bar counter settings, change the percentage toggle to “No”.

Background

Next, add a semi-transparent background color.

• Color: Pale Green with Transparency rgba(17,119,3,0.18)

Bar

Then, in the design tab, add color to the counter bar.

Title Text

Continue by styling the text.

• Font: Verdana
• Color: White #ffffff
• Size:
  • Desktop: 1vw
  • Tablet: 2vw
  • Phone: 3vw

Sizing

Modify the width across different screen sizes too.

• Width:
  • Desktop: 49%
  • Tablet + Phone: 33%

Spacing

Move on to the spacing settings and add some custom spacing values across different screen sizes.

• Top Margin:
  • Desktop: -37vw
  • Tablet + Phone: -40vw
• Bottom Margin:
  • Desktop: 21vw
  • Tablet + Phone: 28vw
• Left Margin:
  • Desktop: 23vw
  • Tablet + Phone: 60vw
• Bottom + Left Padding: 0vw

Border

We’re adding some rounded corners too.

• Rounded Corners: 1vw all four corners

Visibility

Complete the module’s settings by adjusting the overflows and z index in the visibility tab.

• Horizontal Overflow: Visible
• Vertical Overflow: Hidden
• Z-Index: 11

Preview

Now that we’ve gone through all the steps, let’s take a final look at the outcome across different screen sizes.

Desktop

Mobile

It’s a Wrap!

In this post, we’ve shown you how to toggle between images in a beautiful design. This is a great way to create interactive design and use Divi’s built-in z index to determine which image shows up. If you have any questions or suggestions, make sure you leave a comment in the comment section below!
